Garrett Ball Bearing Turbochargers
GT2860R
Ball Bearing Turbocharger

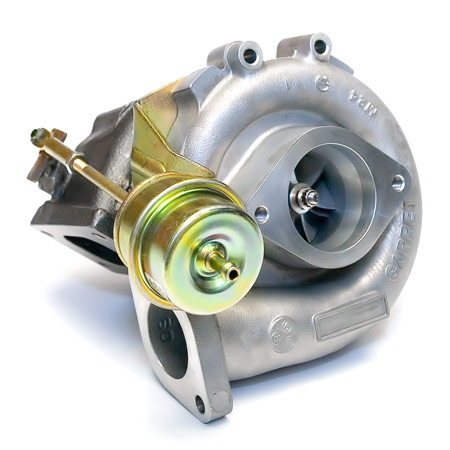

GT2860R 707160-7 Ball Bearing Turbocharger


Horsepower Rated 250 - 360

Engine Displacement
1.8L - 3.0L


Features
  • Dual Ball Bearing
  • Oil & Water Cooled
  • 2 Bolt Compressor Inlet
  • 2 Bolt Compressor Outlet
  • Internally Wastegated
  • Inconel Turbine Wheel*
  • Ni-Resist Turbine Housing*
  • T28 Turbine Inlet Flange - Threaded
  • 5 Bolt Turbine Outlet Flange

*For Extreme Conditions


Compressor Turbine

Inducer Ø: 47.2mm
Exducer Ø: 60mm
Trim: 62
A/R: 0.60

Wheel Ø: 53.8mm
Trim: 76
A/R: 0.64 / 0.86
Wastegated

Map

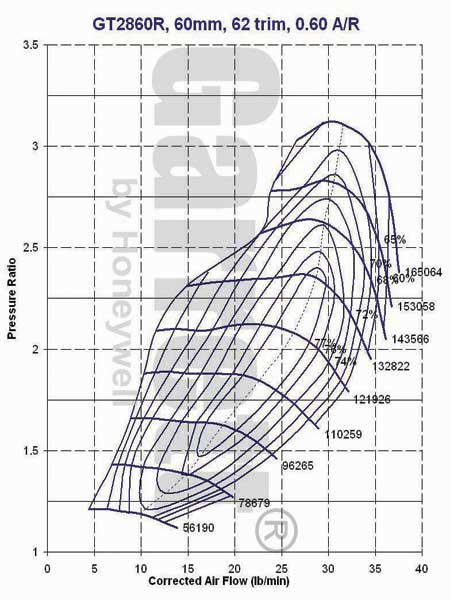

GT2860R 707160-005 Compressor Map

Map
GT2860R 707160-005 Turbine Map
Click for Flange Dimensions

Nissan Skyline GTR Turbocharger

Direct Replacement for RB26DETT R32/R33/R34 GTR

GARRETT P/N: 707160-0005


P/N: GT2860-GTR


$1,266.00


Specify Air Ratio






Procharge Turbochargers Australia
