Garrett Ball Bearing Turbochargers
GT4202R
Ball Bearing Turbocharger

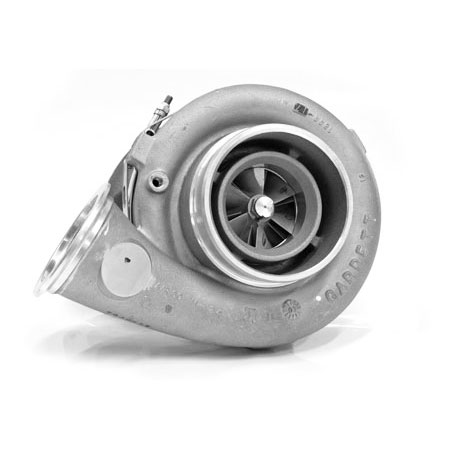

GT4202R Ball Bearing Turbocharger


Horsepower Rated 700 to 1000

Engine Displacement
2.0L - 8.0L

aka GT42RS


Features:
  • Dual Ball Bearing
  • Oil & Water Cooled
  • .60 A/R Compressor Cover
  • Ported Shroud Compressor Inlet
  • 5" Compressor Inlet
  • V-Band Compressor Outlet
  • External Wastegate
  • 4" V-Band Turbine Outlet

Compressor Turbine

Inducer Ø: 74.7mm
Exducer Ø: 102.3mm
Trim: 53
A/R: 0.60

Wheel Ø: 82.0mm
Trim: 84
GT4 Divided
A/R: Optional


Map

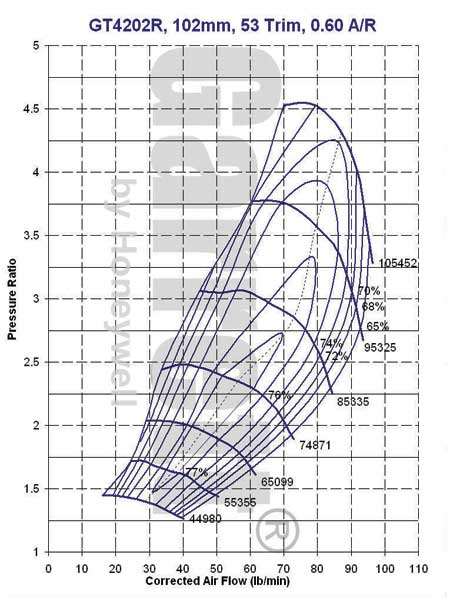

GT4202R Compressor Map


Maps

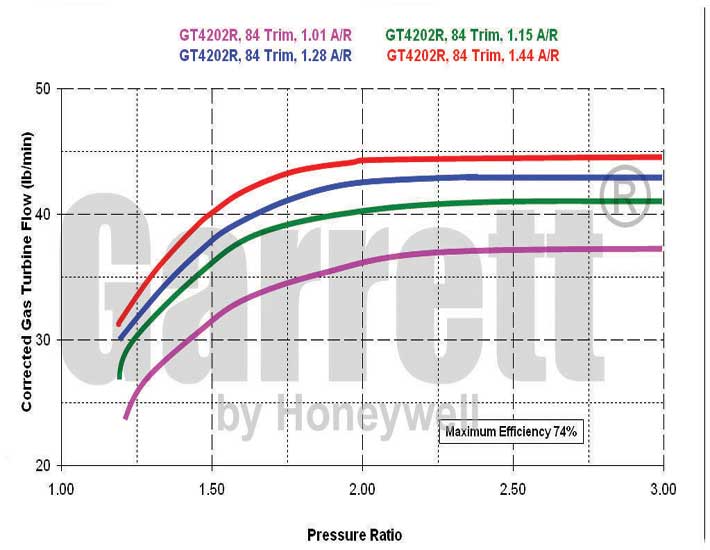

GT4202R Turbine Maps

Click for Flange Dimensions

GARRETT P/N: 774595



GT4 Turbine Housing
 GT4 Turbine Housing 3
  • GT4 Divided Inlet
  • 1.01 / 1.15 / 1.28 / 1.44 A/R
  • 4" V-Band Outlet

Turbo P/N: GT4202R-GT4


$2,590.00

Specify Air Ratio



RELATED PARTS

Oil Supply
Oil Supply Gasket  GOS-T34-01
  • Gasket Oil Supply (*Inc. with Turbo)
 $5.00
Oil Supply Flange  FOS-T34-01
  • CNC Billet Aluminium Oil Feed Flange
 $27.50
Oil Drain
Oil Drain Gasket  GOD-T34-01
  • Gasket Oil Drain (*Inc. with Turbo)
 $5.00
 Oil Drain Flange FOD-T34-01
  • CNC Billet Aluminium Oil Drain Flange
  • 1/2" NPT Female Thresd
 $27.50
Air
 Flange: GT42 Compressor Outlet Adaptor Kit FCO-005K
  • 3.5" Compressor Outlet Flange Kit
  • Slip on 3.5" Hose or Weld to Outlet Pipe
  • Machined to Support an O-Ring
  • Adaptor, O-Ring & V-Band Clamp Included in Kit
  • Typically for GT42, GT42R, GT42RS Turbos
$89.00

Water In-Out
 Fitting Kit: Water - M18 x 1.50 FBK-M1805
  • M18 Universal Water Kit
  • M18 Banjo x 3/8 NPT-F (1)
  • M18 x 1.50 Banjo Bolt (1)
  • M18 Copper Washers (2)
  • Suitable for Barb or Flare Nut Fitting
 $33.00
Exhaust In
 Gasket: Base T4 Divided S/S GT4D-01
  • Stainless Steel Base Gasket (*Inc. with Turbo)
 $22.00
Exhaust Out
5" V-Band Weld Flange  FVB-004
  • 4" V-Band Weld Flange - Mild Steel
$55.00
 5" V-Band Clamp CVB-004
  • 4" V-Band Clamp
  • Heavy Duty
  • Stainless Steel
$30.00
Wastegates
 Tial V60 Wastegate Kit T-V60
  • Tial V60 60mm Wastegate Kit
  • High Horsepower Applicationa
  • Flows 330 CFM @ 1psi Differential Pressure
  • Default Silver - .673 Bar (9.77 PSI)
  • Click Here for More Options
 $795.00

Applicable GARRETT Part Numbers

451888-5011S, 451888-0011, 451888-11
