Turbochargers Performance

Garrett GT Ball Bearing Series

GT5533R-GT6

GT5533R-GT6

GT5533R
Ball Bearing Turbocharger

GT5533R Ball Bearing Turbocharger

Engine Displacement
3.0L - 12.0L

aka GT50R

Features:

Dual Ball Bearing
Oil Cooled
.69 A/R Compressor Cover
Ported Anti-Surge Shroud
6" Compressor Inlet
3.5" Compressor Outlet
External Wastegate
GT6 Undivided Turbine Inlet
5" V-Band Turbine Outlet

Compressor	Turbine
Inducer Ø: 91.2mm Exducer Ø: 133.0mm Trim: 47 A/R: 0.69	Wheel Ø: 111.4 Trim: 84 GT6 Undivided A/R: Optional

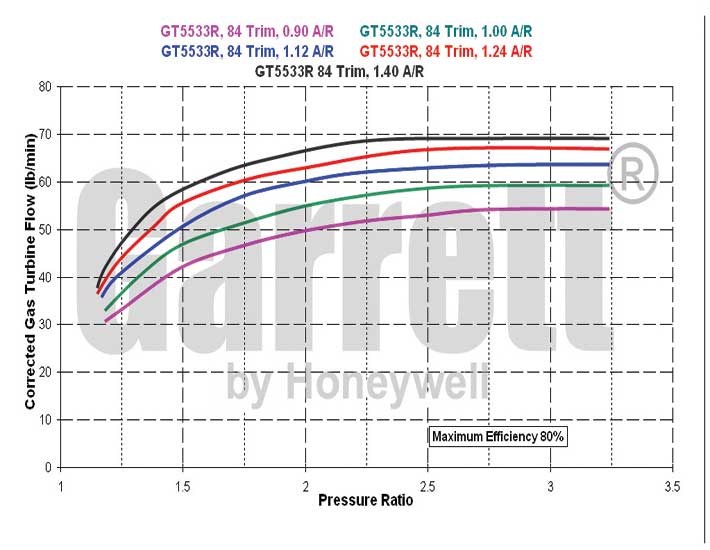

Map	Maps

GARRETT P/N: 769115

TURBO P/N: GT5533R-GT6

$3,835.00

RELATED PARTS

Oil Supply
	GOS-T34-01	Gasket Oil Supply (*Inc. with Turbo)	$5.00
	FOS-T34-01	CNC Billet Aluminium Oil Feed Flange	$27.50
Oil Drain
	GOD-T34-01	Gasket Oil Drain (*Inc. with Turbo)	$5.00
	FOD-T34-01	CNC Billet Aluminium Oil Drain Flange	$27.50
Exhaust In
	GT6U-01	Stainless Steel Base Gasket (*Inc. with Turbo)	$22.00
Exhaust Out
	FVB-005	5" V-Band Weld Flange - Mild Steel	$55.00
	CVB-005	5" V-Band Clamp Heavy Duty Stainless Steel	$35.00
Wastegates
	T-V60	Tial V60 60mm Wastegate Kit High Horsepower Applicationa Default Silver - .673 Bar (9.77 PSI) Click Here for More Options	$795.00

Applicable GARRETT Part Numbers

769115-0001, 769115-1
